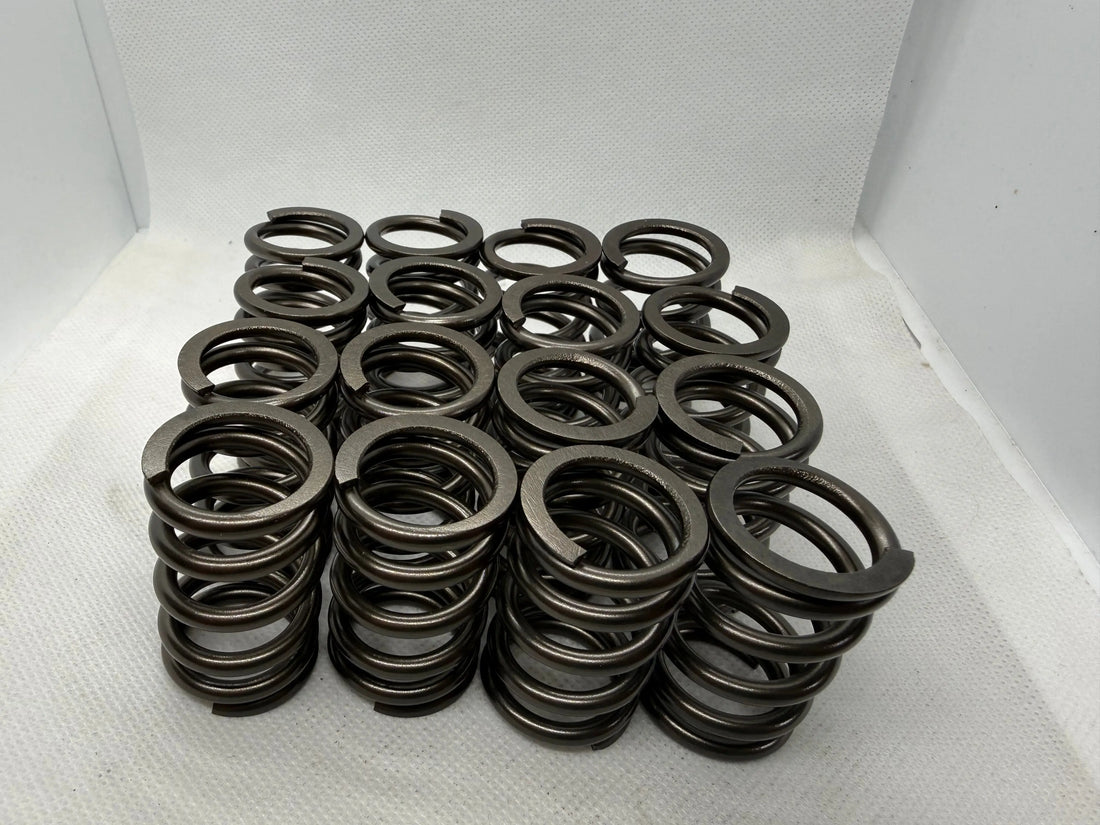

Why We Designed the BK Racing 83 lb Ecotec Valve Spring
Why We Designed the BK Racing 83 lb Ecotec Valve Spring
The BK Racing 83 lb Ecotec Valve Spring was not developed because the Ecotec market needed another spring with a slightly different number printed on the box.
It was developed because we kept seeing the same problem:
As RPM, camshaft aggressiveness, and racing duty cycle increased, the factory Ecotec valvetrain began losing control long before racers necessarily experienced an obvious catastrophic valve-float event.
That loss of control can show up as:
- Unstable rocker/follower motion
- Valve bounce
- Spring surge
- Inconsistent valve timing
- High-RPM power loss
- Increased sensitivity to hydraulic lash instability
BK Racing's existing technical material already explains why stock Ecotec valve springs can begin losing control as RPM and cam aggressiveness increase, and why the spring-side and lash-control sides of the valvetrain need to be treated separately but as interacting parts of one system. BK Racing
The goal was therefore not:
Build the highest-pressure Ecotec valve spring possible.
The goal was:
Build a single spring that provides strong valve control where the engine actually needs it, maintains useful high-lift travel, reduces unnecessary valvetrain load, fits the Ecotec architecture cleanly, and can become part of a complete high-RPM valvetrain system.
That became the BK Racing 83 lb Ecotec Valve Spring.
We Started With the Problem, Not the Pressure Number
A common way to approach valve spring development would be:
“Competitor A has an 82 lb spring, so let's make an 83 or 85 lb spring.”
That was not the engineering target.
The real questions were:
How much seat pressure do we actually need?
How much pressure should the spring build as lift increases?
How much camshaft lift can we support while maintaining usable margin?
Can we keep it a single spring?
Can we reduce unnecessary moving mass elsewhere in the valvetrain?
Can we maintain rocker/follower clearance?
Can we support aggressive Ecotec camshafts without forcing every customer into a complicated dual-spring conversion?
Those questions led to the spring's final characteristics.
The Factory Ecotec Spring Was Designed for a Different Job
The factory GM Ecotec spring was engineered around the original production engine.
That includes considerations such as:
- Factory camshaft profile
- Factory valve lift
- Factory RPM range
- Production durability targets
- Noise
- Emissions
- Cost
- Street operation
There is nothing inherently wrong with the factory spring when it is used in the environment GM designed it for.
The problem begins when the engine is asked to operate outside that environment.
That happens with:
- Higher RPM
- Aggressive aftermarket cams
- Increased valve lift
- High boost
- Sustained circle-track racing
- Drag racing
- Autocross
- Road racing
- Endurance operation
At that point, the spring has to perform a different job.
Why High RPM Changes the Requirement
At higher RPM, the valve still has to complete essentially the same physical movement.
But it has less time to do it.
The spring must control:
Opening acceleration
Valve velocity
Direction reversal at maximum lift
Closing acceleration
Valve seating
faster and faster as engine speed increases.
That increases dynamic demand.
A spring that behaves perfectly at a production RPM range can become increasingly inadequate once the engine is operated continuously at racing speed.
This is exactly the high-RPM environment the BK Racing 83 lb spring is positioned for. BK Racing's current product listing specifically identifies high-RPM racing use and applications including LSJ, LNF, LE5, and LE9 Ecotec engines. BK Racing
Circle Track Racing Was a Major Design Influence
For BK Racing, sustained racing RPM matters more than an impressive one-time peak RPM number.
A circle-track engine may spend lap after lap cycling through a relatively narrow high-RPM range.
That means the spring sees:
- Repeated high-speed valve events
- Sustained cylinder-head temperature
- Continuous fatigue loading
- Repeated rocker/follower acceleration
- Long-duration harmonic exposure
A spring surviving one pull is not the same as a spring maintaining control throughout a race.
That is why the BK spring was developed around sustained valve control, not simply a maximum RPM marketing claim.
Why We Didn't Simply Add More Seat Pressure
If inadequate spring control is the problem, the simplest possible answer would seem to be:
Add a lot more spring pressure.
But that creates another problem.
Every additional pound of spring force has to be carried through the valvetrain.
That increases load on:
- Camshaft lobes
- Roller finger followers
- Hydraulic or solid lash adjusters
- Valve stems
- Valve seats
- Retainers
- Locks
- Timing components
The correct target is therefore not:
maximum pressure
but:
enough pressure to maintain control without unnecessarily loading the rest of the system.
This is why the 83 lb number was never the whole story.
Why 83 lb Seat Pressure Made Sense
The BK Racing spring is specified at:
83 lb @ 1.325" installed height.
That provides a meaningful increase in spring control while keeping seat pressure in a practical range for many performance Ecotec applications. The current BK Racing product page publishes the 83 lb installed-pressure specification and identifies the spring as a high-RPM upgrade rather than an extreme high-seat-pressure racing-only spring. BK Racing
But seat pressure was only the starting point.
The more important question was:
What happens as the valve opens?
We Wanted Strong Pressure at High Lift
A spring does not operate at seat pressure throughout the entire camshaft event.
As the valve opens, the spring compresses farther and pressure increases.
For the BK Racing spring:
83 lb @ 1.325" installed height
becomes approximately:
230 lb @ .500" valve lift.
That is one of the most important characteristics of the spring.
The difference between BK Racing's spring and another spring is not simply:
83 lb vs. 82 lb
or:
83 lb vs. 85 lb.
The important question is:
What pressure is actually available where the camshaft is operating near maximum lift?
BK Racing's current spring page emphasizes exactly that point: the difference is what happens at maximum lift and maximum RPM, not simply the seat-pressure number. BK Racing
Why We Targeted Approximately 230 lb at .500"
Many performance Ecotec camshafts operate in a lift range where pressure near .500" becomes highly relevant.
At that point in the valve event, the spring is controlling:
- High valve velocity
- High valvetrain inertia
- Direction reversal
- Aggressive camshaft acceleration
We wanted substantial spring force available in that region without beginning the valve event with unnecessarily high seat pressure.
That is why the relationship:
83 lb seat → approximately 230 lb @ .500"
is much more important than the spring's name alone.
Why Spring Rate Was Important
The BK Racing 83 lb spring has an effective rate of approximately:
294 lb/in
through the relevant operating range.
That helps explain how it develops substantial open pressure despite moderate seat pressure.
The spring therefore does not rely on a huge initial seat load to create control at high lift.
Instead, pressure develops as the spring moves through the valve event.
That is the behavior we wanted.
Why We Chose a Progressive Spring
The BK Racing spring uses a progressive oval-wire single-spring design. BK Racing's current product information identifies the progressive design and high-RPM intent as core features of the spring. BK Racing
A progressive spring gives us another tool for balancing:
- Seat pressure
- Open pressure
- Effective rate
- Available travel
- Dynamic behavior
Rather than treating the spring as one simple constant-rate coil, the spring geometry can be designed around how it operates through its travel.
The objective was a useful pressure curve, not simply a single impressive pressure number.
Why We Chose Oval Wire
The space available in an Ecotec cylinder head is limited.
Spring design has to work within:
- Spring pocket diameter
- Retainer diameter
- Valve guide
- Valve seal
- Rocker/follower clearance
- Installed height
Oval wire gives the spring designer additional flexibility in balancing:
pressure
travel
stress
and:
packaging.
That helped us develop a capable single-spring package without automatically moving into a larger or more complicated dual-spring system.
Why We Wanted to Keep It a Single Spring
Dual springs absolutely have legitimate uses.
For extreme combinations, they may be the correct answer.
But we did not want to force every performance Ecotec builder into a dual spring just because the engine operates at elevated RPM.
A single-spring system can provide advantages in:
- Packaging
- Weight
- Installation simplicity
- Serviceability
- Cost
- Component count
If a single spring can provide the required pressure, travel, and dynamic control, adding another spring simply because “race engines use duals” does not automatically improve the combination.
That philosophy is consistent with the broader Single vs. Dual Valve Springs for GM Ecotec Engines article in this cluster.
We Wanted Useful Valve Lift Without Living at Coil Bind
Another major design target was usable camshaft lift.
A spring can produce excellent pressure and still be useless for an aggressive cam if it lacks mechanical travel.
So the BK Racing spring system was developed around both:
pressure
and:
travel.
In the appropriate BK configuration, development measurements have demonstrated approximately:
.567" mechanical lift capability.
But we do not recommend operating at that mechanical boundary.
Why We Advertise .520" Instead of .567"
This is one of the clearest examples of the philosophy behind the spring.
BK Racing recommends approximately:
.520" maximum operating lift.
Yet the properly configured system has demonstrated approximately:
.567" mechanical capability.
That leaves roughly:
.047"
between the recommended operating point and the measured mechanical boundary.
We could advertise the larger number.
We intentionally don't.
Mechanical Lift Is Not Recommended Lift
The point where a component physically runs out of travel is not automatically where a race engine should be operated.
At high RPM, the valvetrain experiences:
- Heat
- Deflection
- Spring oscillation
- Manufacturing tolerance stack-up
- Repeated acceleration
- Dynamic loading
That is why BK Racing distinguishes between:
Mechanical Capability
and:
Recommended Operating Lift.
The current spring page publishes approximately .520" as the recommended maximum, while our development work has established additional mechanical capability in the correct seat/seal arrangement. BK Racing
Why .047" of Margin Matters to Us
That approximately .047" is not wasted lift.
It is operating margin.
For a circle-track engine repeatedly cycling at racing RPM, that margin matters more to us than adding another .040" to an advertisement.
The objective is reliability.
A performance engine should not be intentionally designed so that:
mechanical limit = normal operating point.
The Spring Was Only the Beginning
Once we began working deeper into higher-lift and high-RPM Ecotec valvetrains, it became obvious that the spring alone could not solve every problem.
The surrounding components began determining what the spring system could actually do.
That is why the 83 lb spring ultimately became the foundation for a larger BK Racing Ecotec valvetrain system.
Why We Developed Titanium Retainers
The valve spring has to control moving mass.
One of the easiest places to reduce that mass is the retainer.
BK Racing's titanium retainers are approximately 39% lighter than OEM steel retainers according to the current product listing, and they were developed specifically around high-RPM Ecotec use and compatibility with the BK Racing 83 lb spring. BK Racing
Reducing retainer mass helps reduce the inertial load the spring has to control.
That allows us to attack high-RPM stability from both directions:
Improve spring control
and:
Reduce moving mass.
Why Retainer Geometry Matters Just as Much as Weight
A light retainer is useless if it creates another clearance problem.
The Ecotec roller finger follower operates close to the retainer.
That means the retainer has to maintain proper:
- Rocker/follower clearance
- Keeper engagement
- Spring location
So the BK retainer program was not simply about making the lightest piece possible.
It was about reducing mass while maintaining the correct Ecotec geometry.
Why We Developed Extra-Clearance Spring Seats and Viton Valve Seals
As camshaft lift increases, the spring is not always the first thing to run out of clearance.
The retainer can approach the:
valve seal
or:
valve guide
before the spring reaches coil bind.
That is why BK Racing developed Extra-Clearance Spring Seats and High-Performance Viton Valve Sealsspecifically to work with the 83 lb spring system. The current BK Racing product description states that these components were developed to increase installed height and valve-lift capability in aggressive high-RPM camshaft applications. BK Racing
Again, the goal became a complete system rather than simply selling a spring.
Why the Factory Seat and Seal Can Become the Limitation
The factory Ecotec spring-seat and valve-seal arrangement was not designed around every possible high-lift racing camshaft.
As lift increases, clearance beneath the retainer decreases.
At some point the limiting component may become:
retainer-to-seal clearance
instead of:
spring coil bind.
This is why the spring, seat, seal, and retainer have to be considered together.
We Wanted a Modular System
Not every Ecotec engine needs every component.
A moderate-lift engine may be perfectly happy with the 83 lb spring and its existing compatible components.
A higher-lift combination may benefit from:
BK Racing Titanium Retainers
BK Racing Extra-Clearance Spring Seats
and:
BK Racing Viton Valve Seals.
That modular approach allows the builder to address the requirements of the actual engine instead of modifying everything automatically.
Why We Link the 83 lb Spring to Solid Lash Adjusters
There is another major part of high-RPM Ecotec valvetrain stability that the spring cannot solve.
That is:
lash control.
The factory Ecotec valvetrain commonly uses hydraulic lash adjusters.
BK Racing's existing technical article on solid lash adjusters explains how hydraulic adjusters can introduce variables such as bleed-down, collapse, pump-up, sticking, and check-valve instability at high RPM. BK Racing
Those are not valve-spring problems.
That distinction matters.
Valve Springs and Solid Lash Adjusters Solve Different Problems
The BK Racing 83 lb Valve Springs address:
Valve-motion control.
BK Racing Solid Lash Adjusters address:
Hydraulic lash and rocker-geometry variability.
A stronger spring does not eliminate hydraulic instability.
A solid lash adjuster does not eliminate the need for proper spring control.
This is why the components are complementary.
BK Racing's current solid-lash product and technical pages already position the 83 lb springs as a common companion to the solid-lash system. BK Racing
Why This Matters for Kicked Rockers
High-RPM Ecotec racers are familiar with kicked roller followers.
But we deliberately do not reduce that failure to:
“It needs stronger springs.”
A kicked rocker can involve:
- Loss of spring control
- Valve float
- Valve bounce
- Spring surge
- Hydraulic lash instability
- Incorrect geometry
- Component failure
The spring controls valve motion.
The lash adjuster controls lash and follower geometry.
If either side becomes unstable, the rocker relationship can suffer.
That is why BK Racing's existing How Solid Lash Adjusters Help Prevent Kicked Rockers in GM Ecotec Enginesarticle is an important internal link from this spring cluster. BK Racing
Why We Didn't Build a 94 lb Spring Just Because One Already Existed
The Ecotec aftermarket already had higher-pressure options.
The question was not:
How do we make a bigger number?
It was:
Can we achieve the high-lift pressure and control many Ecotec race engines need without carrying unnecessary seat pressure all the time?
That is where the BK 83 became interesting.
The spring produces approximately:
230 lb @ .500"
which puts its high-lift pressure surprisingly close to some popular higher-seat-pressure dual-spring systems.
That does not make those other springs unnecessary.
It means a large seat-pressure number is not the only path to substantial open pressure.
Why We Didn't Build an 82 lb Copy Either
Likewise, the objective was not to create:
“Our version of an 82 lb spring.”
The important distinction was always the complete operating characteristics:
Installed Height
Seat Pressure
Open Pressure
Spring Rate
Mechanical Travel
Recommended Lift
Spring Construction
Racing Duty Cycle
That is why BK Racing's current product page leads with the idea that the difference is not simply 83 lb versus 82 lb. BK Racing
Why We Publish the Numbers
A major part of the BK Racing approach is giving racers enough information to evaluate the product.
We want customers to know:
83 lb @ 1.325"
~230 lb @ .500"
~294 lb/in
.520" recommended maximum lift
and the distinction between recommended lift and measured mechanical capability.
That makes it possible to compare springs using actual valvetrain information instead of marketing names.
Why We Want Even More Testing Data Published
The long-term goal is even broader.
BK Racing wants Ecotec racers to be able to compare springs based on actual measurements through the pressure curve.
A proper comparison should ideally include:
- Free height
- Installed height
- Seat pressure
- Pressure at multiple lift points
- Open pressure
- Coil bind
- Mechanical travel
- Recommended lift
- Spring weight
- Retainer weight
The more original BK Racing test data we publish, the less racers have to rely on vague claims.
That also strengthens the broader GM Ecotec Valve Spring Technical Specifications and Reference Guide we are building as Article 25.
Why the 83 lb Spring Is Not for Every Ecotec
This is important.
We did not design the spring with the belief that every Ecotec engine needs 83 lb of seat pressure.
A stock street engine operating in its original RPM and camshaft range may not need it.
Likewise, an extreme engine may need more.
The BK spring was designed for the large performance range where engines are moving beyond the stock valvetrain but do not necessarily require an extreme high-seat-pressure dual-spring system.
The Applications We Had in Mind
The BK Racing spring is particularly well suited to combinations involving:
- High-RPM naturally aspirated Ecotecs
- Circle-track engines
- Cammed street and performance engines
- Turbocharged applications
- Supercharged applications
- Drag racing
- Autocross
- Road racing
- Endurance racing
BK Racing's current product and valvetrain pages position the spring, retainers, seats/seals, and related components around exactly these high-RPM and racing environments. BK Racing
But the final spring choice should always follow the actual engine combination.
When We Would Recommend More Spring
There are engines where the 83 lb spring may not be the final solution.
That could include:
- Extremely aggressive camshafts
- Extreme RPM
- Heavy valves
- Very high boost
- Specialized race applications
In those situations, higher seat pressure, higher open pressure, or different spring architecture may be justified.
There is nothing wrong with moving to a 94, 104, 128 lb, or another properly engineered system if the engine actually needs it.
When We Would Recommend Less Spring
The opposite is also true.
If the engine:
- Uses stock cams
- Operates at factory RPM
- Is primarily street driven
- Has no demonstrated need for additional valve control
then there may be no reason to increase spring pressure substantially.
BK Racing's goal is not to put 83 lb springs into every Ecotec.
It is to provide a strong solution for the engines that actually need increased control.
Why the Complete BK Racing Valvetrain System Matters
The 83 lb spring ultimately became one part of a much larger strategy.
The complete system can include:
BK Racing 83 lb Ecotec Valve Springs
Control valve motion.
BK Racing Titanium Valve Spring Retainers
Reduce moving mass while maintaining proper Ecotec geometry. BK Racing
BK Racing Extra-Clearance Spring Seats and Viton Valve Seals
Increase installed-height and high-lift clearance capability where needed. BK Racing
BK Racing Solid Lash Adjusters
Remove hydraulic variability from the lash-control side of serious high-RPM combinations. BK Racing
These products solve different problems.
Together, they address the complete Ecotec valvetrain.
Why We Keep Linking These Topics Together
High-RPM valve control cannot be understood from one article.
A customer researching:
Ecotec valve float
should also understand:
spring rate
coil bind
installed height
camshaft profile
retainer mass
and:
lash control.
Likewise, someone researching a solid lash adjuster should understand why spring control still matters.
That is why the BK Racing Knowledge Center links these technical subjects together instead of treating every product page as an isolated sales page.
The technical relationships are real.
The internal links should mirror those relationships.
The BK Racing Engineering Philosophy Behind the 83 lb Spring
The spring can ultimately be summarized by a few design decisions.
We chose:
83 lb seat pressure
because we wanted meaningful seat control without unnecessarily extreme initial spring load.
We targeted:
~230 lb near .500" lift
because high-lift control matters greatly in performance Ecotec camshaft combinations.
We used:
a progressive oval-wire design
to balance pressure, travel, packaging, and dynamic behavior.
We retained:
a single-spring architecture
because many serious Ecotec combinations do not require the additional complexity of a dual spring.
We maintain:
.520" recommended maximum lift
despite greater mechanical capability because racing components should have operating margin.
And we developed:
retainers, seats, seals, and solid lash components
because the spring cannot solve every part of the valvetrain by itself.
The Most Important Reason We Designed the BK Racing 83 lb Spring
If you remember one thing from this article:
We did not design an 83 lb spring because 83 was the number we wanted to sell.
We designed a valve spring around the problems we wanted to solve.
Those problems were:
high-RPM valve control
aggressive camshaft control
useful high-lift capability
valvetrain mass
mechanical clearance
racing durability
and:
keeping the entire Ecotec valvetrain stable without simply adding as much spring pressure as possible.
The 83 lb seat pressure is one result of that engineering process.
It is not the entire purpose of the spring.
Continue Learning: GM Ecotec Valve Springs
Valve spring pressure is only one part of maintaining stable valve control in a performance Ecotec. Continue through the BK Racing GM Ecotec Valve Spring Knowledge Center to learn how installed height, spring rate, coil bind, camshaft lift, RPM, retainers, spring seats and valve seals work together as a complete valvetrain system. When planning your combination, also explore the BK Racing 83 lb Ecotec Valve Springs, BK Racing Titanium Valve Spring Retainers, BK Racing Extra-Clearance Spring Seats, and BK Racing Press-On Viton Valve Seals.
For aggressive racing combinations, also review BK Racing's Solid Lash Adjusters and related kicked-rocker technical information to understand the separate lash-control side of the Ecotec valvetrain.
- GM Ecotec Valve Springs: The Complete Performance Guide
- How GM Ecotec Valve Springs Work
- Understanding GM Ecotec Valve Spring Specifications
- Ecotec Valve Spring Installed Height: Why It Matters
- Ecotec Valve Spring Seat Pressure vs. Open Pressure
- Understanding Ecotec Valve Spring Rate
- Ecotec Valve Spring Coil Bind and Maximum Valve Lift
- Ecotec Retainer-to-Seal Clearance and Spring Seat Clearance
- What Causes Valve Float in GM Ecotec Engines?
- Ecotec Valve Float vs. Valve Bounce vs. Spring Surge
- How RPM Affects Ecotec Valve Spring Requirements
- How to Match Valve Springs to Ecotec Camshafts
- How Camshaft Lift Affects Ecotec Valve Spring Selection
- How Camshaft Duration and Aggressive Lobe Profiles Affect Ecotec Valve Springs
- Single vs. Dual Valve Springs for GM Ecotec Engines
- Drop-In vs. Modified GM Ecotec Valve Spring Systems
- Comparing Popular GM Ecotec Valve Spring Options
- Why Valve Spring Pressure Alone Doesn't Tell the Whole Story
- Choosing GM Ecotec Valve Springs for Street, Performance, and Racing Applications
- Why We Designed the BK Racing 83 lb Ecotec Valve Spring
- Understanding the BK Racing Ecotec Valve Spring System
- How BK Racing Tests and Measures Ecotec Valve Springs
- Common GM Ecotec Valve Spring Installation Mistakes
- GM Ecotec Valve Spring FAQ: Pressure, Lift, RPM, Coil Bind, and Camshafts
- GM Ecotec Valve Spring Technical Specifications and Reference Guide
Supporting search topics:
why BK Racing designed 83 lb Ecotec valve springs, Ecotec high RPM valve springs, Ecotec racing valve springs, Ecotec valve spring design, Ecotec progressive valve springs, Ecotec oval wire valve springs, Ecotec .520 lift valve springs, Ecotec titanium retainers, Ecotec solid lash adjusters, Ecotec kicked rockers, Ecotec valve float.
maximum suggested lift
coil bind: .785"
drop in racing valve springs
ecotec 2.0, 2.2, 2.4
drop in
suggested steel retainers
compatible with all ecotec
using stock retainers
ecotec 2.0, 2.2, 2.4 liter
race application
race application, no warranty
all ecotec 2.0
drop in racing
set of 16
dual valve springs
ecotec valve spring kit
stock retainers
without any machining required
without any machining
