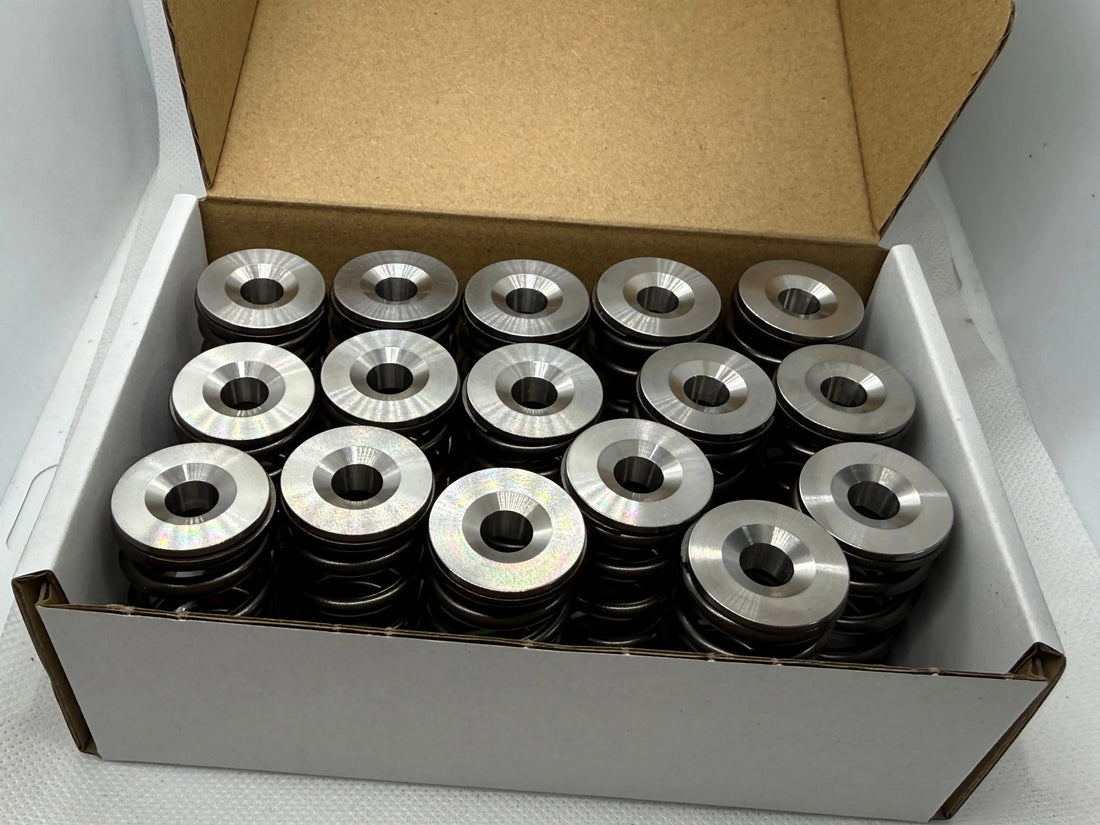

Choosing GM Ecotec Valve Springs for Street, Performance, and Racing Applications

Choosing the correct valve spring for a GM Ecotec engine should begin with one question:

What does the engine actually need the spring to do?

There is no single valve spring pressure that is correct for every:

A stock street engine operating near the factory RPM range has completely different valvetrain requirements than a naturally aspirated circle-track engine spending lap after lap at elevated RPM.

Likewise, a high-boost turbo engine can place different demands on the valve spring than a naturally aspirated engine running an aggressive high-RPM camshaft.

The correct spring needs to be selected around the complete combination:

Camshaft + Valve Lift + RPM + Valvetrain Mass + Boost + Duty Cycle

Only after those factors are understood should spring pressure enter the conversation.

Start With the Engine's Actual Use

Before looking at spring specifications, classify the engine.

Most Ecotec applications can be divided into four broad categories:

Stock / Mild Street

Performance Street

High-Performance / Aggressive Cam

Dedicated Racing

There will always be overlap between these categories, but they provide a useful starting point.

The mistake is assuming every modified Ecotec needs the same spring.

It doesn't.

Stock and Mild Street Ecotec Engines

A basically stock Ecotec operating within its original RPM range does not automatically need an aggressive aftermarket valve spring.

If the engine retains:

Factory camshafts
Factory valve lift
Factory RPM range
Factory-size valves
Normal street operation

then the original spring system may be perfectly appropriate if the springs remain within specification.

Installing substantially more spring pressure simply because stronger springs are available does not automatically improve the engine.

More spring pressure means more load.

That additional load is carried through the:

Camshaft
Roller follower
Valve
Valve seat
Retainer
Locks
Lash adjuster
Timing system

For a stock engine that does not need additional valve control, unnecessary pressure provides little benefit.

When a Street Ecotec Should Consider Upgraded Springs

The situation changes when the engine begins moving outside its original operating conditions.

An upgraded spring becomes increasingly worthwhile when adding:

Aftermarket camshafts
Increased valve lift
More aggressive cam profiles
Increased RPM
Increased boost
Larger or heavier valves
Frequent high-RPM operation

The farther the engine moves away from its original valvetrain requirements, the more important proper spring selection becomes.

Mild Performance Ecotec Builds

A mild performance engine might include:

Intake and exhaust upgrades
ECU tuning
Mild camshaft changes
Moderate RPM increase
Mild-to-moderate boost increase

These engines may benefit from additional spring pressure without requiring a full racing spring package.

A lower-pressure performance spring can provide additional valve-control margin while avoiding unnecessary valvetrain loading.

This is the category where springs marketed as OEM upgrades or mild performance replacements can make sense.

RET 63 lb Springs as an Example

Racing Engine Technologies offers a lower-pressure Ecotec spring option around the 63 lb range.

This illustrates that a performance spring does not automatically need 80, 90, 100, or 120+ lb of seat pressure.

A lower-pressure spring may make sense when the engine needs:

more capability than the original spring

but does not require:

a high-RPM racing spring.

The important point is to match the spring to the engine rather than automatically choosing the highest-pressure option.

Performance Street Ecotec Engines

The next level includes engines with modifications such as:

Performance camshafts
Increased valve lift
Increased RPM limit
Turbocharger upgrades
Higher boost
Regular high-RPM operation

At this point, valve spring control becomes considerably more important.

This is also where many Ecotec owners begin comparing springs in the:

75–85 lb seat-pressure range.

That includes popular offerings such as the ZZP 82 lb spring, BK Racing 83 lb spring, BradBuilt 85 lb spring, and various Supertech and RET systems.

But as we established in the previous articles:

Those seat-pressure numbers alone are not enough to choose between them.

Camshaft Comes Before Valve Spring

When choosing springs for a modified Ecotec, determine the camshaft first.

You need to know:

Valve Lift

How far does the valve actually move?

Duration

How long is it being held through the valve event?

Lobe Aggressiveness

How quickly is the valve being accelerated?

Intended RPM

Where is the camshaft designed to operate?

A .500" lift camshaft designed around relatively smooth valve acceleration does not necessarily require the same spring as another .500" camshaft with much more aggressive ramps.

The lift number is only part of the camshaft.

Why Camshaft Lift Matters

The spring compresses farther as valve lift increases.

That affects:

Open pressure
Remaining spring travel
Coil-bind clearance
Retainer-to-seal clearance

For example, the BK Racing 83 lb spring is approximately:

83 lb @ 1.325" installed height

but approximately:

230 lb @ .500" lift. BK Racing

So the spring operating at .500" is experiencing an entirely different load than it experiences with the valve closed.

That is why the actual camshaft lift needs to be known before choosing the spring.

Recommended Lift Must Match the Camshaft

A spring should have enough travel to accommodate the camshaft while retaining appropriate operating margin.

BK Racing recommends approximately:

.520" maximum valve lift

for the 83 lb spring system. BK Racing

That recommended number should not be confused with the spring's absolute mechanical boundary.

BK Racing has measured approximately:

.567" mechanical capability

in the appropriate spring-seat and valve-seal configuration.

But we intentionally maintain the lower:

.520" recommended maximum.

That gives the spring system operating margin rather than treating the mechanical limit as the target.

A .500" Cam Doesn't Automatically Need a “.500 Spring”

If a spring physically reaches its mechanical limit at .500", it would not be a good choice for a camshaft actually operating at .500".

The spring needs room beyond operating lift.

Likewise, the complete cylinder head needs sufficient:

Coil-bind clearance
Retainer-to-seal clearance
Retainer-to-guide clearance
Rocker clearance

The camshaft's lift should fall comfortably inside the properly configured spring system's operating range.

RPM Is the Next Major Consideration

As RPM increases, the spring has less time to control each valve event.

The valve must:

Open

Accelerate

Decelerate

Reverse direction

Return

and:

Seat under control

in progressively less time.

This is where the demands on the spring increase dramatically.

Street RPM and Racing RPM Are Not the Same Environment

Peak RPM alone doesn't tell the whole story.

Consider two Ecotec engines that both reach:

7,500 RPM.

Engine A is a street car.

It occasionally touches 7,500 RPM during a pull before shifting.

Engine B is a circle-track engine.

It operates repeatedly between perhaps:

5,500 and 7,500 RPM

lap after lap.

The peak number is identical.

The spring environment is not.

Duty Cycle Matters

The circle-track spring experiences far more:

High-speed cycles
Heat
Repeated acceleration
Harmonic exposure
Fatigue loading

This is why BK Racing puts particular emphasis on sustained high-RPM operation.

The BK Racing 83 lb springs are specifically positioned for high-RPM applications including circle track, drag racing, autocross, boosted street engines, and naturally aspirated combinations where increased valve control is required. BK Racing

For BK Racing's primary circle-track applications, duty cycle is one of the biggest reasons we do not select springs by peak RPM alone.

Circle Track Ecotec Engines

A dedicated circle-track engine changes our priorities.

Now we care heavily about:

Sustained RPM stability

Valve control

Rocker stability

Spring durability

Heat resistance

Fatigue life

Operating margin

The spring may perform thousands upon thousands of high-RPM valve events during a race.

For these engines, simply asking:

“Will this spring rev to 7,500?”

isn't enough.

The better question is:

Can this valvetrain remain controlled at the intended RPM throughout an entire racing event?

Why BK Racing Developed the 83 lb Spring Around Racing

The BK Racing spring was developed specifically around the problems encountered as Ecotec engines move into demanding high-RPM operation.

Its current specifications are:

Seat Pressure: 83 lb @ 1.325"

Open Pressure: Approximately 230 lb @ .500"

Spring Rate: Approximately 294 lb/in

Design: Progressive oval-wire single spring

Recommended Maximum Lift: Approximately .520"

Finish: Nitride treated

Mechanical Capability: Approximately .567" measured in the appropriate configuration

The objective is not simply to create more seat pressure.

The objective is to provide enough pressure where the valvetrain needs it while retaining practical travel and operating margin. BK Racing

Naturally Aspirated Racing Applications

Naturally aspirated Ecotec race engines can be particularly demanding because power is frequently found by extending the useful RPM range and increasing camshaft aggressiveness.

A serious naturally aspirated combination may use:

Increased valve lift
Longer duration
Aggressive lobes
Ported cylinder heads
Larger valves
Higher compression
Higher RPM

The spring needs to maintain valve control as the engine moves through that entire operating range.

For these applications, open pressure and dynamic control become increasingly important.

Why More Seat Pressure Isn't Automatically Better for an N/A Race Engine

It can be tempting to install the stiffest available spring simply because the engine is being raced.

That is not automatically the best approach.

If an 83 lb spring provides adequate control for the:

camshaft + valve mass + RPM

then moving to:

94 lb

104 lb

or:

128 lb

seat pressure simply because those options exist may create unnecessary load.

The objective is not maximum pressure.

The objective is adequate control with appropriate margin.

When Higher Seat Pressure Becomes Appropriate

There absolutely are Ecotec combinations that require more.

Higher-pressure springs become increasingly appropriate as you combine:

Extreme RPM
Very aggressive cam profiles
Heavy valves
Large valves
Extreme boost
Specialized racing requirements

For those engines, a 94, 104, or even higher-pressure spring may be entirely justified.

The engine combination needs to create the requirement.

The number on the spring shouldn't create the engine combination.

Supertech 94 lb Dual Springs

The Supertech 94 lb dual spring is clearly positioned toward racing use.

Its published specifications include:

94 lb seat pressure @ 34.6 mm

232 lb open pressure

13.9 mm maximum lift

and:

20.7 mm coil bind.

The current ZZPerformance listing specifically describes the 94 lb package as intended for racing applications and includes springs, titanium retainers, spring seats, and smaller-diameter valve seals. ZZPerformance

For an engine that actually needs the additional seat pressure and dual-spring architecture, that can be an appropriate solution.

But Compare the Supertech 94 to the BK 83

This comparison illustrates why the application needs to determine the spring.

At the seat:

Supertech: 94 lb

BK Racing: 83 lb

That's an 11 lb difference.

But their published/measured open pressures are approximately:

Supertech: 232 lb

BK Racing: ~230 lb @ .500". ZZPerformance

The Supertech provides significantly more initial seat pressure.

But by the high-lift portion of the valve event, the pressure difference becomes much smaller.

So the question becomes:

Does your engine actually need the additional 11 lb at the seat?

For some combinations, yes.

For many others, possibly not.

What About the Supertech 75 lb Dual?

Supertech also offers a lower-pressure dual-spring system.

The current published specifications include:

75 lb @ 33.90 mm

193 lb open pressure

12.90 mm maximum lift

with titanium retainers and spring seats. ZZPerformance

This proves another important point:

Dual spring does not automatically mean higher pressure than a single spring.

The BK Racing 83 lb single has both greater published seat pressure and greater measured open pressure than this particular lower-pressure dual system.

Architecture and pressure are different characteristics.

What About the ZZP 82 lb Spring?

ZZPerformance 82 lb Ecotec Valve Springs are another established performance option.

ZZP also specifically notes a fitment issue worth considering: newer GM rocker PN 12693909 may interfere with its titanium retainers, so clearance should be verified during assembly. ZZPerformance

That is a perfect example of why spring selection cannot stop at:

“Is the pressure right?”

The entire valvetrain system has to fit and operate correctly.

BradBuilt 85 lb Springs

The BradBuilt / BC Parts 85 lb spring belongs in the same general performance comparison because its seat-pressure designation falls directly between several popular alternatives.

However, as documented in our previous comparison, the public information available for that spring does not give us enough technical data to confidently assign:

Open pressure
Spring rate
Mechanical lift
Numeric recommended lift
Coil-bind clearance

Therefore, we should not recommend it for a specific lift or RPM based solely on the:

85 lb

designation.

The missing information matters.

Boosted Street Ecotec Engines

Boost creates another consideration.

Pressure in the intake manifold acts against the intake valve.

As boost increases, that pressure can oppose some of the spring force holding the intake valve closed.

That does not mean every turbocharged Ecotec needs an extreme spring.

It means boost becomes another variable in the calculation.

Moderate Boost vs. Extreme Boost

A street turbo combination running moderate boost with conservative cams may not need the same spring pressure as an extreme competition turbo engine.

As boost increases, the spring-selection decision should increasingly consider:

Valve area

Boost pressure

Seat pressure

Camshaft

RPM

This is why saying:

“Turbo engines need 94 lb springs.”

would be far too simplistic.

Some do.

Many do not.

High-Boost Racing Applications

At extreme boost levels, additional seat pressure can become increasingly valuable.

This is one situation where the additional seat pressure of a higher-pressure spring can make sense even if another spring has similar open pressure.

The engine builder needs to account for the pressure acting against the intake valve.

That is fundamentally different from selecting a spring for a naturally aspirated engine.

Valve Weight Changes Spring Requirements

Spring selection should also change when valve mass changes.

A heavier valve requires the spring to control more mass.

This can occur with:

Oversized valves
Different valve materials
Different valve designs

A spring that works perfectly with one valve package may have less control margin with another.

This is another reason BK Racing evaluates the spring as part of a complete valvetrain rather than as an isolated component.

Retainer Weight Matters Too

The retainer is part of the moving valvetrain mass.

Reducing retainer mass can improve control without simply adding more spring pressure.

This is where the BK Racing Titanium Valve Spring Retainers become valuable.

Rather than approaching every high-RPM problem with:

more spring

we can also reduce the mass the spring has to control.

That's a better systems approach.

Hydraulic vs. Solid Lash Control

Spring selection should also consider the lash-control system.

The Ecotec roller-follower valvetrain normally relies on hydraulic lash adjusters.

At high RPM, hydraulic behavior introduces another variable.

More spring pressure does not automatically solve:

Hydraulic collapse
Bleed-down
Pump-up
Internal sticking
Lash instability

That is why BK Racing's solid lash-adjuster program addresses a different part of the high-RPM Ecotec valvetrain.

The spring controls the valve.

The lash system controls the relationship between the camshaft, follower, and valve.

Both have to remain stable.

A Kicked Rocker Does Not Automatically Mean “Needs More Spring”

This is especially important for racing Ecotec engines.

If an engine kicks a roller follower, it is tempting to immediately conclude:

The valve floated. Install heavier springs.

That may be the problem.

But it isn't the only possibility.

Rocker instability can also involve:

Valve bounce
Spring surge
Hydraulic lash instability
Incorrect geometry
Mechanical clearance problems

Spring pressure should be increased when the evidence shows more spring control is actually required—not simply because a valvetrain problem occurred.

Choosing Springs by Camshaft Lift

A practical first filter is the actual camshaft lift.

Stock or Near-Stock Lift

You may not need a high-performance racing spring unless RPM, boost, or camshaft dynamics create another requirement.

Moderate Performance Lift

A performance spring should provide adequate open pressure and comfortable mechanical clearance.

Around .500" Lift

Now spring travel, open pressure, seal clearance, and retainer clearance become increasingly important.

Above .500" Lift

The entire system needs to be measured carefully.

At this point, don't select the spring from an advertised lift number alone.

Verify the actual assembled cylinder head.

Choosing Springs by RPM

RPM should be treated similarly.

Factory RPM Range

A healthy factory spring may remain appropriate with otherwise stock components.

Moderately Increased RPM

A performance spring provides additional control margin.

Sustained High RPM

Spring design, pressure curve, mass, harmonics, and durability become increasingly important.

Extreme RPM

The entire valvetrain needs to be engineered as a system.

At that point, the question isn't simply:

Which spring?

It is:

Which spring, retainer, valve, lash system, camshaft, installed height, and clearance package?

A Practical Ecotec Spring Selection Guide

Application	Spring Strategy	Primary Concern
Stock street	OEM / verified stock-type spring	Reliability
Mild performance street	Mild upgraded spring	Additional control without unnecessary load
Cammed performance street	Performance spring matched to cam	Lift + open pressure
Boosted street	Performance spring matched to boost/cam/RPM	Seat control + open pressure
N/A circle track	High-RPM performance spring	Sustained dynamic control
Aggressive circle track	High-RPM spring + lightweight valvetrain	Cam acceleration + sustained RPM
High-boost racing	Higher seat pressure as required	Boost force + RPM
Extreme race build	Complete engineered spring/valvetrain package	Dynamic stability

This is intentionally a strategy chart rather than a pressure chart.

We don't want someone reading:

“Circle track = 83 lb”

or:

“Turbo = 94 lb.”

The engine combination still determines the actual spring.

Where the BK Racing 83 lb Spring Fits

The BK Racing 83 lb spring was designed to occupy a broad high-performance range between mild replacement springs and extreme high-seat-pressure racing systems.

Its combination of:

83 lb seat pressure

~230 lb @ .500"

~294 lb/in effective rate

progressive oval-wire construction

.520" conservative recommended lift

and:

substantial mechanical travel in the appropriate configuration

makes it particularly suited to applications requiring meaningful high-lift and high-RPM control without automatically moving into very high seat pressure. BK Racing

Applications We Designed the BK 83 Around

The BK Racing 83 lb spring is particularly relevant for:

Cammed Ecotec performance engines
High-RPM naturally aspirated builds
Circle-track engines
Road-race applications
Autocross
Drag racing
Boosted performance builds
Engines operating repeatedly at elevated RPM

That does not mean every one of those engines automatically needs an 83 lb spring.

It means those are the applications where the spring's characteristics become particularly useful.

When the BK 83 May Be More Spring Than You Need

A stock:

Camshaft
RPM limit
Naturally aspirated
Street-driven

Ecotec may simply not need it.

If the factory spring provides adequate valve control, there is little reason to increase valvetrain loading just for the sake of having an upgraded spring.

BK Racing does not believe every Ecotec needs an 83 lb spring.

We believe an Ecotec that needs more valve control should have the correct spring for the job.

When the BK 83 May Not Be Enough

There are also engines beyond the intended range of the BK 83.

Examples could include combinations with:

Extreme RPM
Extremely aggressive camshaft acceleration
Very heavy valves
Extreme boost
Specialized racing requirements

Those engines may genuinely require a higher-pressure or different spring architecture.

That's where options such as the higher-pressure Supertech and RET racing systems become relevant.

There is nothing wrong with using more spring when the engine actually requires more spring.

Don't Buy a Spring Based on Horsepower

Horsepower by itself is a poor valve spring selection criterion.

500 hp turbo Ecotec

might operate at relatively modest RPM with moderate camshaft lift.

250 hp naturally aspirated Ecotec

might operate at much higher RPM with an extremely aggressive camshaft.

The lower-horsepower engine could potentially place greater dynamic demand on its valvetrain.

Spring requirements follow:

valve motion

not simply:

dyno numbers.

Don't Buy a Spring Based on Boost Alone

Likewise:

20 psi

does not automatically identify the correct spring.

The actual force depends partly on valve area, and the spring still has to satisfy the camshaft and RPM requirements.

Boost is one input.

It is not the entire calculation.

Don't Buy a Spring Based on RPM Alone

An engine turning:

8,000 RPM

with a mild lobe does not necessarily need the same spring as another engine turning 8,000 RPM with a much more aggressive lobe.

RPM determines how quickly the event occurs.

The camshaft determines what motion has to occur during that time.

The spring has to control both.

Don't Buy a Spring Based on Lift Alone

Likewise:

.520" capable

does not mean:

appropriate for every .520" camshaft.

Mechanical travel tells us whether the spring can physically accommodate the lift.

It does not tell us whether the spring can dynamically control that camshaft at the intended RPM.

Don't Buy the Highest Pressure Just Because It's Available

This is perhaps the easiest mistake to make.

If:

83 lb is good

then:

94 lb must be better

and:

104 lb must be even better

and:

128 lb must be the ultimate solution.

That logic does not work.

The highest-pressure spring is only the best choice when the engine actually requires that pressure.

Otherwise, you're simply increasing valvetrain load.

Measure Before Final Assembly

Regardless of which spring is selected, the final cylinder head should be measured.

Verify:

Installed Height

Seat Pressure

Open Pressure

Coil-Bind Clearance

Retainer-to-Seal Clearance

Retainer-to-Guide Clearance

Rocker Clearance

and where applicable:

Piston-to-Valve Clearance

No catalog specification can replace measurement of the actual assembled engine.

The BK Racing Approach to Ecotec Spring Selection

Our approach can be summarized very simply:

Use enough spring to maintain control.

Maintain appropriate mechanical margin.

Avoid unnecessary valvetrain load.

Reduce moving mass where practical.

Match the spring to the camshaft.

Match the complete valvetrain to the RPM and duty cycle.

For a mild street engine, that may mean staying relatively close to stock.

For a cammed performance engine, it may mean a moderate performance spring.

For many high-RPM Ecotec race combinations, that is where the BK Racing 83 lb system was designed to operate.

And for the extreme combinations that genuinely require more pressure, use more spring.

The application determines the spring—not the marketing number.

The Most Important Ecotec Valve Spring Selection Rule

If you remember one thing from this article:

Choose the valve spring for the complete engine combination, not for one specification.

A properly selected Ecotec spring has to satisfy:

Camshaft Lift

Camshaft Acceleration

RPM

Valvetrain Mass

Boost

Mechanical Clearance

Duty Cycle

while providing:

Enough Seat Pressure

Enough Open Pressure

Appropriate Spring Rate

Adequate Mechanical Travel

and:

Appropriate Safety Margin.

That is how you choose between a stock spring, mild performance spring, BK Racing 83 lb spring, 94 lb dual, or an even more aggressive racing system.

The correct spring isn't the one with the largest number.

It's the one that keeps the valve under control for the engine you're actually building.

Continue Learning: GM Ecotec Valve Springs

Valve spring pressure is only one part of maintaining stable valve control in a performance Ecotec. Continue through the BK Racing GM Ecotec Valve Spring Knowledge Center to learn how installed height, spring rate, coil bind, camshaft lift, RPM, retainers, spring seats and valve seals work together as a complete valvetrain system. When planning your combination, also explore the Valve Spring Product Link" href="https://bkracing.com/products/ecotec-83lb-valve-springs?_pos=1&_sid=91abfd555&_ss=r">BK Racing 83 lb Ecotec Valve Springs, BK Racing Titanium Valve Spring Retainers, BK Racing Extra-Clearance Spring Seats, and BK Racing Press-On Viton Valve Seals.

For aggressive racing combinations, also review BK Racing's Solid Lash Adjusters and related kicked-rocker technical information to understand the separate lash-control side of the Ecotec valvetrain.

Primary search topic:
Choosing GM Ecotec valve springs

Supporting search topics:
best Ecotec valve springs, Ecotec racing valve springs, Ecotec street valve springs, Ecotec valve springs for cams, Ecotec valve springs for boost, Ecotec high RPM valve springs, Ecotec circle track valve springs, L61 valve springs, LSJ valve springs, LNF valve springs, LE5 valve springs, BK Racing 83 lb valve springs. control the valve

select the right

spring manufacturer

Tags:

Engine Building
